Building a 1:9 unun

The idea came from a few articles in Italian. I could neither verify if the schemata were OK (some building details appeared suspicious to me), nor could I know in advance if the building techniques were correct. But I knew that many companies sell 1:9 ununs for long-wire antennas, so I can assume it should work for somebody, if not, the unun would not be anymore in the catalog. I decided to give this technique a try.

WARNING: It may be safer for your transceiver and for your pocket to buy a 1:9 unun. I did this because I only find fun in building. Copy my construction at your own risk.

References  German Theory and practice's,%20voorbeelden.htm  Dutch Theory and practice  German Theory and practice  Italian Theory and practice  English Comment from an user  English Kits for experimenters  English An US manufacturer site  French A French manufacturer site

My version

First, you have to get a T-200-2 toroid.

This means, that it is a toroid of size 200 and material 2. The datasheet says that material 2 gives good results until 30 MHz.

Beginners: do not blindly copy other's designs: understand what you are doing first. In my case, I tried to understand the material first.

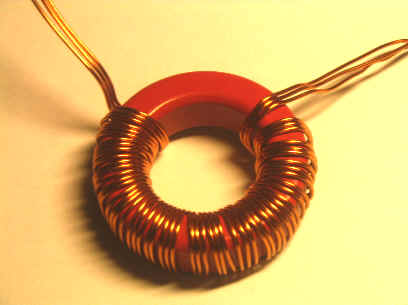

Next, pass three wires together around the toroid. I chose enameled 1 mm diameter copper wire. I passed eighteen times the center of the toroid. Other authors use thirteen. My aim was to better serve lower bands, so I put a few more turns.

Also, I verified the electric isolation of enameled wire and it seems that for 20W it is on the safe side.

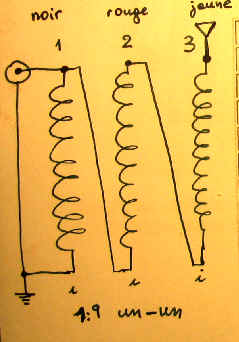

This is the diagram. The colours names in French mean: Black, Red, and Yellow, from left to right. Refer to this diagram for explaining connections later.

I added another connection in point 2 - (upper red wire)

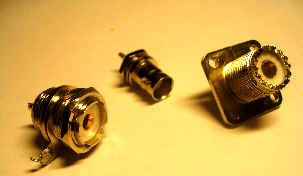

Choose a connector. I used the leftmost SO-238 one for my unun.

At the beginning, I only connected the upper-black/lower-red wires to the center of the SO-238 connector; the mass of the SO-238 connector is connected to the lower black wire using a bananna connector (upper left, near the "R"), and the antenna is connected to the upper yellow wire (lower left from the ring).

After some trials, in which the 1:9 unun relationship appeared to be a too high transformation ratio, I added another connector to the connection of the upper red and the lower yellow wires. My hope was that it would show a 1:4 unun ratio.

Following the purest Argentinian traditions, I used recovered materials. The case was coming from a ten-years old Synoptics 10 Mb Ethernet adaptor. I noticed that the inner part of the case was Aluminium coated, and that it was conducting. I put some rubber strips recovered from broken bicyicle tyres. The whole fitted nicely inside the case.

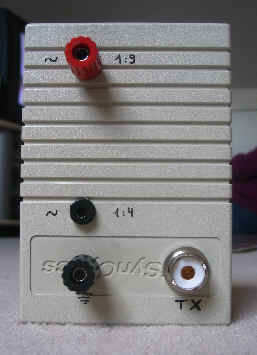

The finished unun.

  • From Antenna: The upper bananna connector corresponds to the upper-yellow wire. It is labeled 1:9.

  • From Antenna: The central bananna connector corresponds to the upper-red/lower-yellow connection.

  • To mass: The bottom bananna connector is connected to the SO-238 mass and to the lower black wire. It is expected to give a mass point for radials or a mass point.

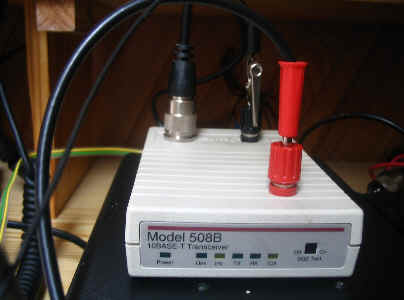

  • The SO-238 connector: This one goes to the transceiver. The central SO-238 connector goes to the upper black wire, the mass of the SO-238 goes to the lower black wire / upper red wire.

Some tests being done, before I added the 1:4 connection.

The 7 meter mast is a fiberglass fishing rod. The antenna is made from electrical PVC-coated multistranded wire, according to my calculations it should be OK for 10-20 Watts.

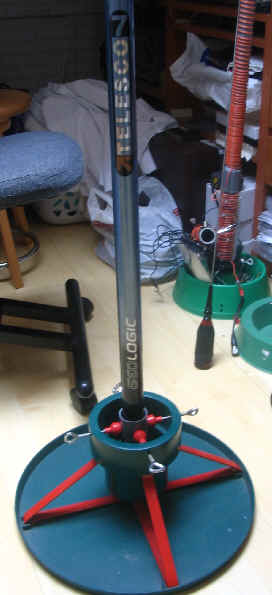

The base is recovered from a Christmas Tree. The 7 m (~21') fishing rod was bought, it cost 15 euros at Decahtlon, a French sports supermarket.

Behind are my other antennas under development.
